Name: 5.5KW 10MPA Coin/card Operated Car Washing Self Service Machine/self-service Carwash
Brand: Qingdao Risense Mechatronics Sales Co., Ltd.
SKU: PQ-109
Availability: InStock

Home Products Self service car wash machine

5.5KW 10MPA Coin/card Operated Car Washing Self Service Machine/self-service Carwash

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Risense
Model Number:	PQ-109

Contact Now

Detailed Product Description

Size:	800x600x1950mm	Material:	Hip-dip Galvanized Steel Frame
Warranty:	One Year	Output Power:	>1500W
Product Name:	Self Service Car Wash Machine	Usage:	Wash Vehicle
Voltage:	220V	Total Power:	5.5KW
Available Car To Wash:	All Kinds Of Cars	Washing System:	Water Spraying,Foam Washing,Vacuum Cleaning
Water Consumption:	8-12L/min	Shampoo Consuption:	4ml/min
Water Pressure:	10Mpa	Gross Weight:	250kg

Product Description

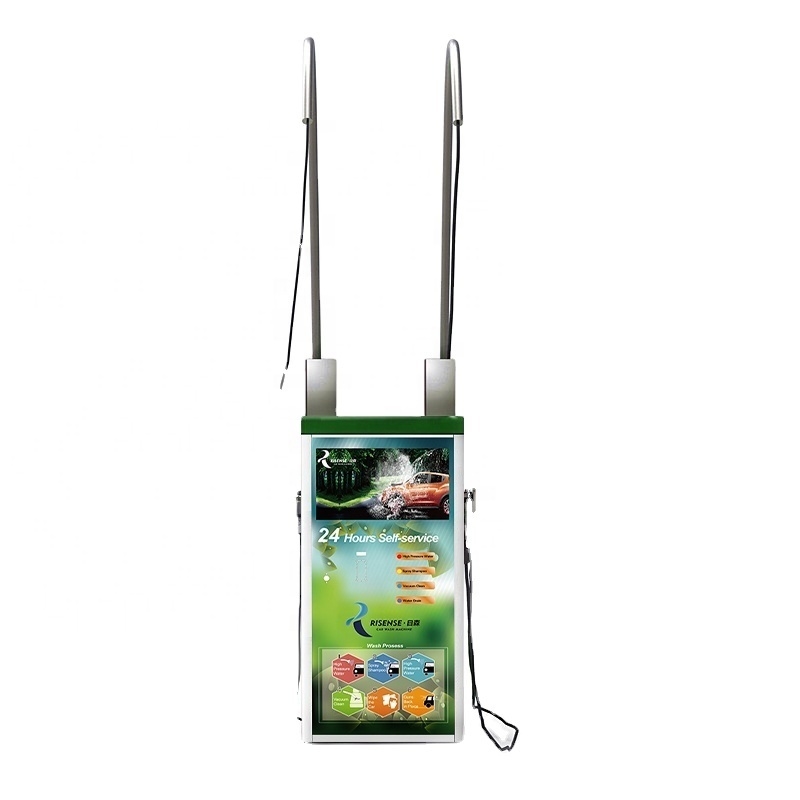

Risense PQ-109 self service car wash machine is a 3 in 1 machine which is combined high pressure water washing system, shampoo sprinkling wash system and vacuum car wash cleaner. recharge card collect system and collector system is also equiped.

Overall dimensions			800x600x1950mm
Height of swing arm			3000mm
Swing arm			360 degree
Length of water pipe			5000mm
Length of vacuum pipe			5000mm
Water pressure			10 Mpa(80kgs)
Mains voltage			2PHASE AC220V /50HZ
Total power			5.5KW
Water consumption			8-12L/min
Shampoo consumption			4ML/min
Available car to wash			All kinds of cars
Gross Weight			250KGS
Working temp.			-10℃-40℃

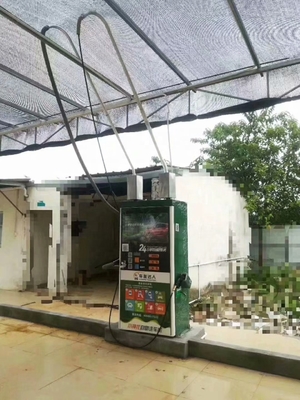

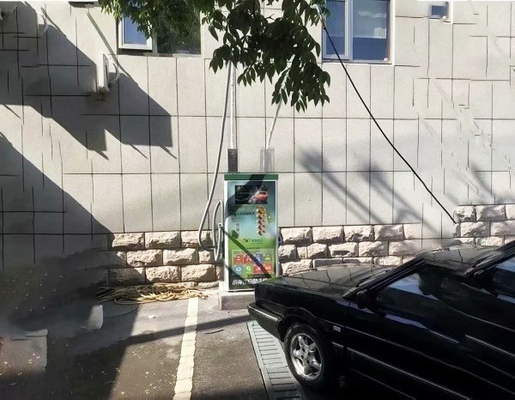

Installation layout

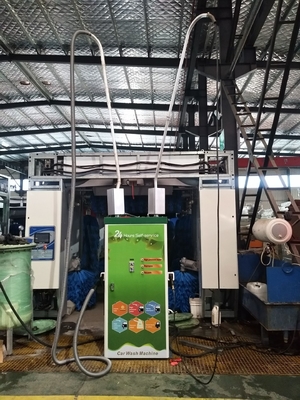

Machine details

Company Introduction

Qingdao Risense Mechatronics Co.,Ltd.

as a prominent manufacturer, supplier and exporter, has grown to be a leading force to produce all kinds of automatic car wash machine with the MK's advanced technology and core componets from Japan. For the automatic car wash machine including semi-automatic touch free car wash, fully automatic rollover car wash, fully automatic tunnel car wash, automatic bus and truck wash, self-service car wash and other car wash equipments which to offer high-end and precisely car washing service to the customer from every levels needs.

Certifications

Our Service

FAQ

1. Q: May I know which coin size receives?
A: We can customize your coin size, please tell me detailed coin diameter and width.
2. Q: Which power requirement of this self-service car washing machine?
A: 220V/380V
3. Q: If I no need coin, what other method I can use?
A: Our machine accepts coin and recharge card, and if you want to pay by cash, you need to search money changing machine in Alibaba
4. Q: What’s the main function of this self-service car washing machine?
Three main functions:

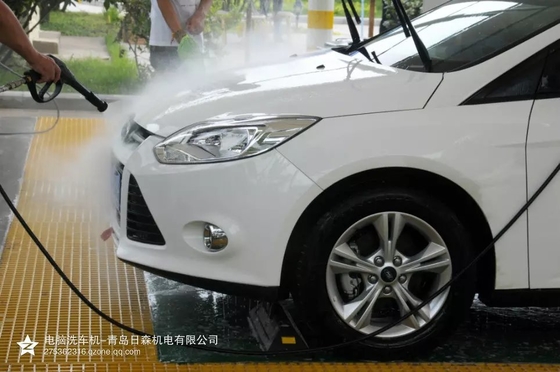

a. High pressure water system

b. Shampoo sprinkling system

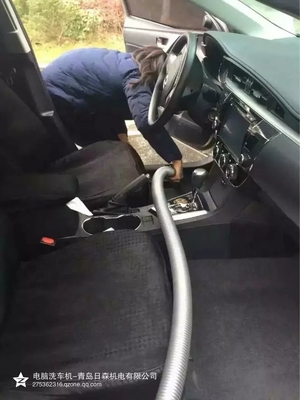

c. Vaccum clean function
5. Q: Can I use hot water for washing?
A: Sorry for that, just cold water washing.
6. Q: Tell me what’s the final height?
A: 4.3m total height.

7. Q: How many minutes for one time washing?
A: We can set up the timing depending on your requirements, usually one coin for 2 minutes or 3 minutes.
8. Q: Do I need installation?
A: It’s well installed and we set up the parameter. You just use expansion bolts to fix the concrete on the ground.
