Name: Self Service Car Washing System Manual Car Cleaning Machine Using Card Recharge or Coin Recharge .
Brand: Qingdao Risense Mechatronics Sales Co., Ltd.
SKU: PQ-109
Availability: InStock

Home Products Self service car wash machine

Self Service Car Washing System Manual Car Cleaning Machine Using Card Recharge or Coin Recharge .

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Risense
Model Number:	PQ-109

Contact Now

Detailed Product Description

Size:	8005801750	Material:	Hot Dip Galvanized Frame
Warranty:	1 Year	Output Power:	<1000W
Overall Dimensions:	8005801750	Height Of Swing Arm:	3000mm
Length Of Water Pipe:	5000mm	Total Power:	5.5Kw
Water Pressure:	10 Mpa(80kgs)	Main Voltage:	2phase AC200V/50Hz
Water Consumption:	8-10L/Min	Shampoo Consumption:	4ml/Min
Gross Weight:	250KG	Product Name:	Self-Service Car Wash Machine
Design Style:	New China-Chic

Product Overview

Risense Home Use Self-Service Pressure Washer car wash machine/Car Wash Machine with Vacuum Cleaner

Risense PQ-109 self-service car wash machine is a 3 in 1 machine which is combined a high-pressure water washing system, shampoo sprinkling wash system, and vacuum car wash cleaner. recharge card collect system and collector system are also equipped. Qingdao Risense Mechatronics is a car wash equipment manufacturer with almost a decade of design and production experience.
We installed many automatic carwash machines in Thailand, America, Russia, Malaysia, China, Australia, Kingdom of Saudi Arabia, Africa, Nigeria, Ghana, Kenya, Spain.

FEATURES AT A GLANCE

* High-pressure water washing system.
* Shampoo springing wash system.
* Vacuum car cleaner system.
*Recharge car collect system or coin collector system .* Charged according to washing time .
* Remote control system .
* Winterization system .
* Hot-dip galvanized steel frame .

PRODUCT SPECIFICATIONS

1	Overall dimensions	800x600x1950mm
2	Height of swing arm	3000mm
3	Swingarm	360 degree
4	Length of water pipe	5000mm
5	Length of vacuum pipe	5000mm
6	Water pressure	10 Mpa(80kgs)
7	Mains voltage	2PHASE AC220V /50HZ
8	Total power	5.5KW
9	Water consumption	8-12L/min
10	Shampoo consumption	4ML/min
11	Available car to wash	All kinds of cars
12	Gross Weight	250KGS
13	Working temp.	-10℃-40℃

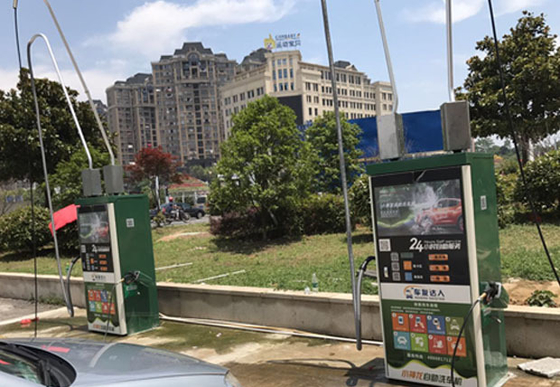

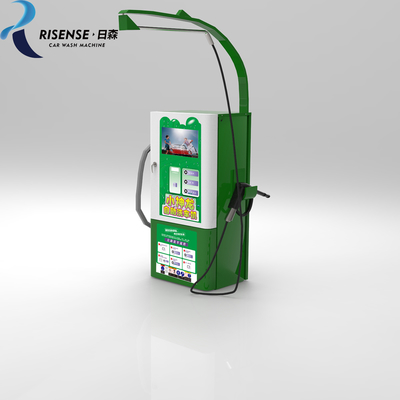

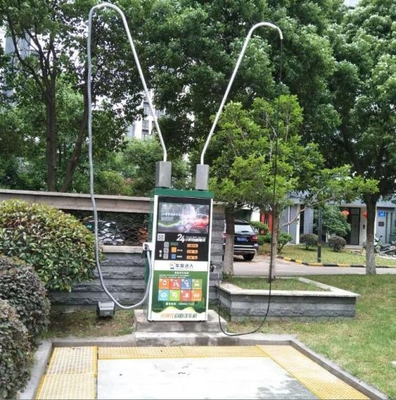

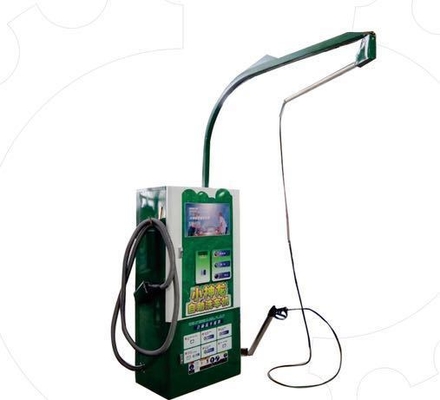

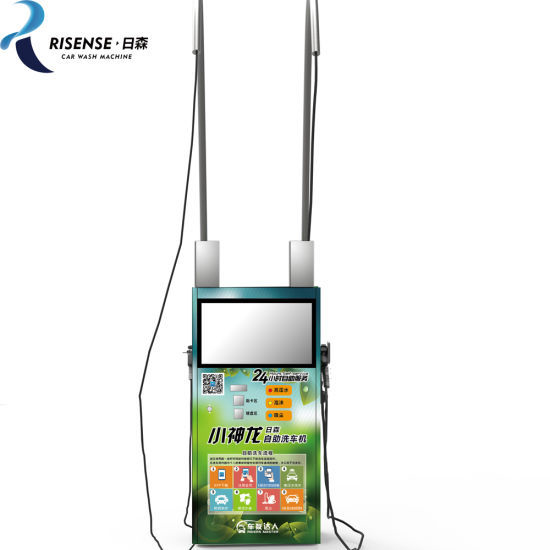

Details Images

SALES AND SERVICE NETWORK

Qingdao Risense Mechatronics Co.LTD

as a prominent manufacturer, supplier, and exporter, has grown to be a leading force to produce all kinds of automatic car wash machine with the MK's advanced technology and core components from Japan.
The automatic car wash machine including a semi-automatic touch-free car wash, fully automatic rollover car wash, fully automatic tunnel car wash, automatic bus and truck wash, self-service car wash, and other car wash equipment which to offer high-end and precisely car washing service to the customer from every level need.

SIMILAR PRODUCTS

FAQ

1. Q: May I know which coin size receives?
A: We can customize your coin size, please tell me detailed coin diameter and width.
2. Q: Which power requirement of this self-service car washing machine?
A: 220V/380V
3. Q: If I do not need a coin, what other method I can use?
A: Our machine accepts coin and recharge cards, and if you want to pay by cash, you need to search money changing machine on Alibaba
4. Q: What’s the main function of this self-service car washing machine?
A : Three main functions :

a. High-pressure water system
b. Shampoo sprinkling system
c. Vacuum clean function
5. Q: Can I use hot water for washing?
A: The Machine can only receive a cold water or normal temperature water .
6. Q: Tell me what’s the final height?
A: 4.3m total height.7.

Q: How many minutes for one-time washing?
A: We can set up the timing depending on your requirements, usually one coin for 2 minutes or 3 minutes.
8. Q: Do I need installation?
A: It’s well installed and we set up the parameter. You just use expansion bolts to fix the concrete on the ground.
