Name: New Design Touch Free Double Arm Car Wash System Automatically with Tires Washing Machine and Chassis Washing System
Brand: Qingdao Risense Mechatronics Sales Co., Ltd.
SKU: HP-280
Availability: InStock

Home Products touchless car wash machine

New Design Touch Free Double Arm Car Wash System Automatically with Tires Washing Machine and Chassis Washing System

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Risense
Model Number:	HP-280

Contact Now

Detailed Product Description

Size:	1660x3600x3000mm	Material:	Hop-DIP Galvanized Steel Frame Whole Machine
Warranty:	1 Year	Output Power:	1000-1500W
Product Name:	Touchless Car Wash Machine	Occupied Land:	10000x4000x3100mm
Power:	29KW	Air Pressure:	0.75-0.9Mpa/Airflow Rate≥0.1m³/min
Water Consumption:	200L/Car	Electricity Consumption:	0.7KW/Car
Shampoo Consumption:	50mL/Car	Wax Consumption:	10mL/Car
Car Type:	Car/jeep/coach Within 10seats	Washing Time:	5 Minutes
Design Style:	New China-Chic

Product Overview

Fully automatic brushless car washing machine HP-271

HP-280 is our newly developed touchless car wash with Double-arm moving around and washing the car. It makes 360ºC and overall cleaning without dead angle come true.

It features wipe-free, crystal coating, and automatic drying. It uses high-quality parts, imported software from Germany, Japan, and France, and an intelligent control panel. All these ensure its good performance

FEATURES AT A GLANCE

1. Intelligent horizontal high-pressure nozzles, following car surface automatically
2. Double arm can overlap wash car head, side, and tail.
3. Intelligent dryers, follow car surface automatically
4. Tire rim brushes with rotating high-pressure water
5. Different washing models to choose
6. Hot galvanized steel structure, anti ruse

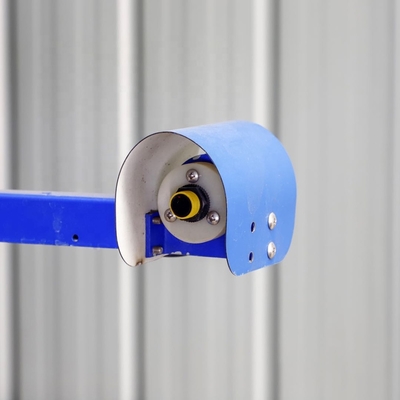

sensor

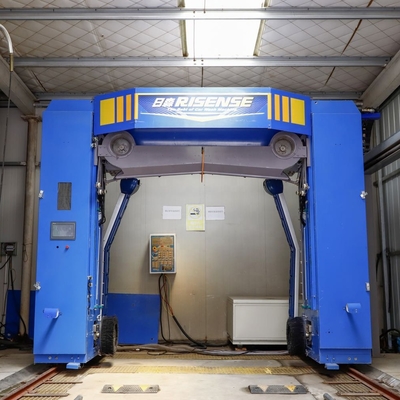

Left elevation

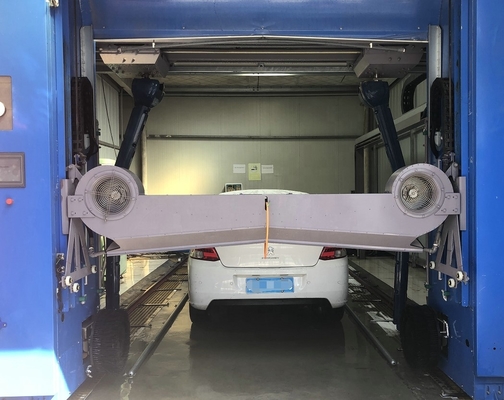

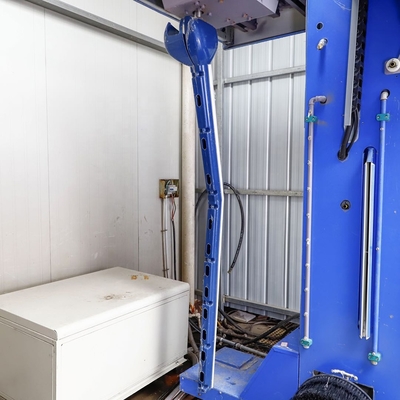

The Arm

PRODUCT SPECIFICATIONS

No	Item	Data
1	Occupied land	10000x4000x3100mm
2	Max car dimension	5200x2100x2150mm
3	Car type	car/jeep/coach within 10seats
4	Washing time	5 Minutes/Car
5	Voltage	3PHASE AC380/220V /50HZ/60HZ
6	Water requirement	DN25mm/Waterflow rate≥150L/min
7	Shipping	Container 40HQ

PRODUCT CONFIGURATION

Newdsoe Detergent Pump

Delta Servo Drive system

Schneider Contactor

SALES AND SERVICE NETWORK

Our Company :

Qingdao Risense Mechatronics Co.Ltd. is a manufacturer of car washing machines with advanced production equipment and a strong technical force. Our products are popular with car dealers, coach stations, and travel agencies because of their wide series, high-quality washing effect, reasonable prices, and stylish designs.

Our products are extensively used in car decoration and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social
needs.

SIMILAR PRODUCTS

FAQ

Q: Will we provide pre-sale services?
A: Free product consultation is available and custom car wash solutions will be provided according to your preferences car wash machine type, daily passenger flow, venue size, etc.

Q: What are your cooperation modes?
A: There are two cooperation modes with Risense: agency and distribution. You can become an agent by purchasing more than 10 vehicle wash machines every year and as one of our distributors, you can enjoy a more favorable price.

Q: Do you provide construction drawings design?
A: Our engineers will provide customers with a car washing plant design and construction drawings on the basis of your location, environment, and purchased equipment model.

Q: What after-sales service do you provide?
A: 1) Installation support. We can assign engineers to visit the site for installation.
2) English manuals and other documents are available for delivery.
3) Lifelong technical support; maintenance service for the complete service life.
4) Warranty: one year for the whole machine.
