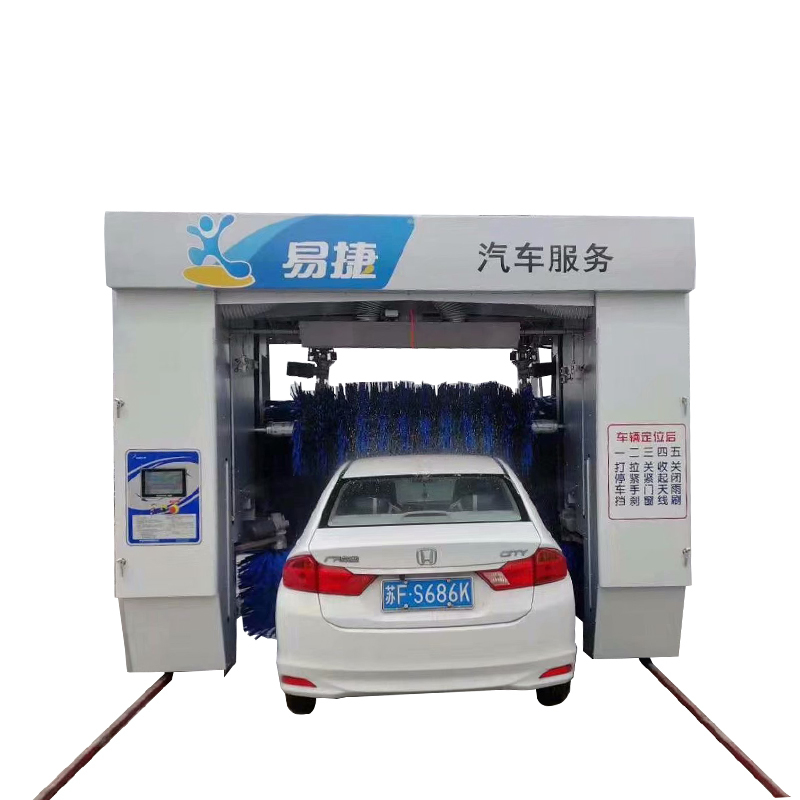

CF-360 Full Automatic Rollover Car Wash Machine Car Washer

CF-360 Full Automatic Rollover Car Wash Machine Car Washer

  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
  • CF-360 Full Automatic Rollover Car Wash Machine Car Washer
CF-360 Full Automatic Rollover Car Wash Machine Car Washer
Product Details:
Place of Origin: Shandong, China
Brand Name: RISENSE
Model Number: CF-360-1
Contact Now
Detailed Product Description
Size: 2400*3600*3000 Material: Hot Dipped Galvanized Steel Frame
Warranty: One Year Output Power: >1500W
Product Name: CF-330 Full Automatic Rollover Car Wash Machine Assembling Range: 10000*3700
Available Car To Wash: Car/jeep/coach/within 10 Seats Car Wash Capacity: 2"
Main Voltage: 3 Phase, AC 380V, 50Hz Total Power: 18.16kw
Water Consumption: 72L/car Moving Range: 10000*3700
Shampoo Consumption: 7ml/car Wax Consumption: 12ml/car
Design Style: New China-Chic


Product Overview
Product Overview
Automatic foam spraying rollover car wash machine
The CF-360 car wash equipment features high-pressure water system and can clean deep stains to meet different customer requirements. This soft touch car wash machine utilizes soft brushes, which can quickly rotate and move in various directions to remove contamination on the surface during operation.

FEATURES AT A GLANCE
FEATURES AT A GLANCE
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 0
Right elevation
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 2
Left elevation
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 4
Front elevation


PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Model
CF-360
Voltage
AC 380V 3 Phase 50Hz
Assembling Range
L*W*H :10.5m×3.7m×3.1m
Moving Range
L*W: 10000mm×3700mm
Main Power
20KW
Water Supply
DN25mm water flow rate≥80L/min
 Air Pressure
0.75~0.9Mpa air flow rate≥0.1m3/min
Ground Flatness
Deviation≤10mm
Applicable Vehicles
Sedan/jeep/minibus within 10 seats
Applicable Car Dimension
L*W*H: 5.4m×2.1m×2.1m
Washing Time
1 rollover3 minutes 20 seconds /2 rollover 4 minutes 25 seconds

PRODUCT CONFIGURATION
PRODUCT CONFIGURATION
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 6
CHANGCHAI high power engine
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 8
Imported EATON control valve
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 10
Japan Shimadzu hydraulic motor

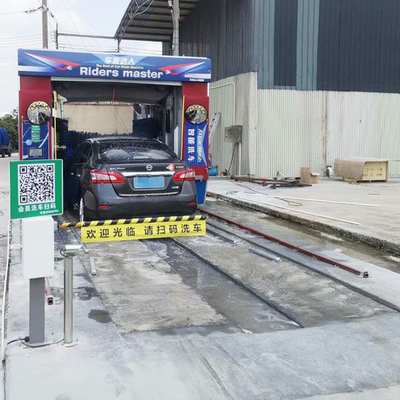

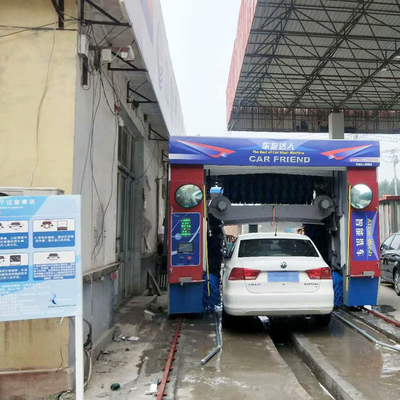

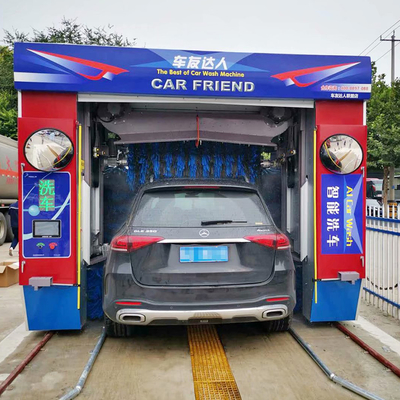

Successful Project
Successful Project
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 12
Project in Thailand
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 14
Project in India
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 16
Project in Russia

SIMILAR PRODUCTS
SIMILAR PRODUCTS
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 18
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 20
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 22
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 24
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 26
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 28
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 30



SALES AND SERVICE NETWORK
SALES AND SERVICE NETWORK
CF-360 Full Automatic Rollover Car Wash Machine Car Washer 32

FAQ
FAQ
Q1:*****
A1:*****
