Name: Risense Professional Auto Car Wash Machine System Fully Automatic Touch with Wheel Brush Electric Power Source
Brand: Qingdao Risense Mechatronics Sales Co., Ltd.
SKU: CF-380
Availability: InStock

Home Products CF-380

Risense Professional Auto Car Wash Machine System Fully Automatic Touch with Wheel Brush Electric Power Source

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Risense
Model Number:	CF-380

Contact Now

Detailed Product Description

Power Source:	Electric	Size:	2900360029935mm
Material:	Hot-dipped Galvanized Steel Frame	Warranty:	One Year
Output Power:	>1500W	Color:	Multicolor, Customized
Battery Capacity:	4000-4999mAh	Pressure:	8MPa
Product Name:	Auto Car Wash Machine System Fully Automatic Touch	Installation Size:	1100043003100mm
Applicable Size:	110000*4300mm	Car Wash Speed:	3 To 8 Minutes
Water Source:	DN25 More Than 80L/min	Electric Source:	0.75-0.9Mpa
Water Consumption:	80-140L/car	Shampoo Consumption:	15-20ml/car
Voltage:	380V 50HZ

Product Overview

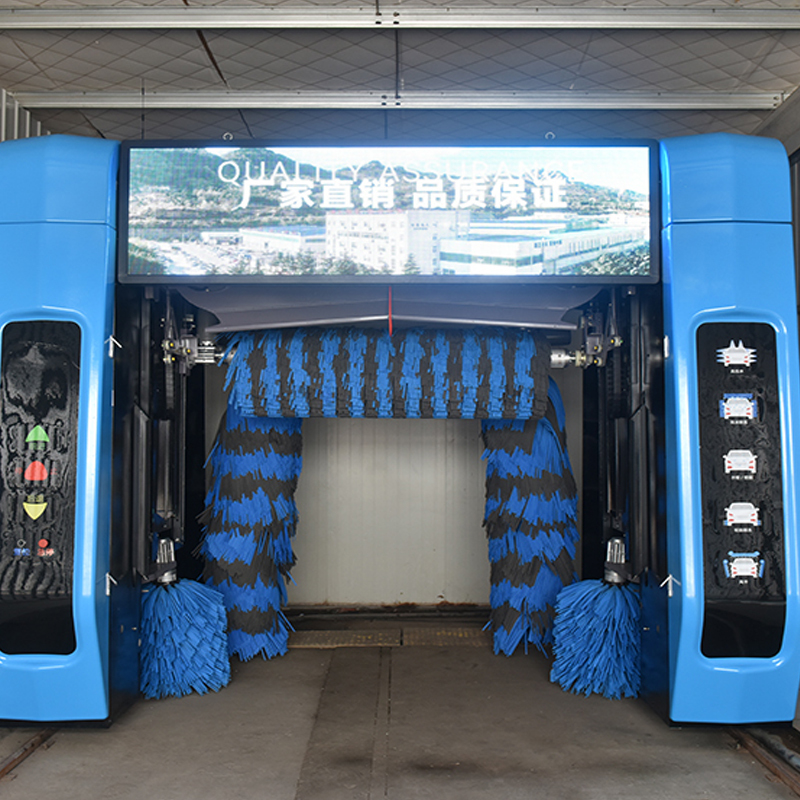

Risense professional manufacturer auto car wash machine system fully automatic touch with wheel brush

Risense rollover car wash machine 380 with smart screen, as a new generation of the car washing machine with multi-screen interactive function, has more intelligent elements which greatly improves the car washing experience. It can be started by scanning the QR code; The entire car washing can be unattended and all these can be operated on the phone. The display screen on the right side of the car washing machine has intelligent indicator light and voice prompt. In this way, the customer can adjust the car body to the right position safely and correctly.

FEATURES AT A GLANCE

1. Full automatic PLC computer control system is adopted.
2. ZCF alloy bending frame structure cut by the laser high-precision cutting machine. The machine can be operated stably and it is
very hard and safe. 5 brushes(1 up-down top brush+2 short vertical brushes and 2 long vertical brushes)
3. The up-down top brush control system is more stable and precise.
4. With the tiltable large vertical brush technology, through detection and induction, the large vertical brush is tilted into an
"eight" shape, which fits the model and improves the cleaning ability.
5. It is equipped with high-solution LED screen to show the whole washing process and on which you can play videos and
advertisement. So it has better publicity effect.
6. The streamlined design and integrated seal plate makes it have a novel and more attractive appearance.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

overall dimension	3.08m3.6m3.05m
overall dimension		conveyor belt length 9m space3.2m
Installation size	11m4.3m3.1m，leave necessory passage for inspection
moving range	11000mm*3700mm
Voltage	AC380V50Hz ,20.16KVA
water requirement	pipe diameter DN25 flow≥80L/min
air source requirement	0.75～0.9Mpa flow≥0.1m³/min
ground flatness	Error≤10mm
cars to be washed	cars, jeep, coach within 10 seats
car wash size	5.4m2.1m2.1m
car wash speed	normal wash 1 rollover 3ˊ20〞/fine wash 3 rollover 7ˊ10〞
water consumption	72L-95L/car
power consumption	0.46kwh-0.70kwh/car
shampoo consumption	10ml/car
wax consumption	15ml/car

Product Feature

Company Profile

Qingdao Risense Mechatronics Co.,Ltd. is a manufacturer of car washing machines with advanced production equipment and strong technical force. Our products are popular with car dealers, coach station and travel agencies because of its wide series, high quality washing effect, reasonable prices and stylish designs. Our products are extensively used in car decoration and other industries. Our products are widely recognized and trusted by user and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationship and achieving mutual success!

As a car wash system manufacutrer, we have nearly 10 years of production experience. To date, our vehicle cleaning systems have been sold in more than 100 countries including Russia, The United States, Canada, Singapore, Saudi Arabia, Pakistan and Spain. If you are in search of a new vehicle cleaning system or are looking for an agency opportunity, you are welcome to contact us.

Our company has obtained ISO9001 Quality System Certification, Europe CE Quality Certification and ISO 14000 Environmental Certifications. We conduct production and quality inspections in strict accordance with the standards set by these governing bodies and some of our own additional standards. We put forth great effort to meet all of the requirements of our customers.

Our Service

SIMILAR PRODUCTS

FAQ

Q: Will we provide pre-sale services?
A: Free product consultation is available and custom car wash solutions will be provided according to your preferences car wash machine type, daily passenger flow, venue size, etc.

Q: What are your cooperation modes?
A: There are two cooperation modes with Risense: agency and distribution. You can become an agent by purchasing more than 10 vehicle wash machines every year and as one of our distributors, you can enjoy a more favorable price.

Q: Do you provide construction drawings design?
A: Our engineers will provide customers with a car washing plant design and construction drawings on the basis of your
location,environment, and purchased equipment model.

Q: How about installation?
A: Our after-sales installation engineers will go to the site and offer customers free installation, testing, operational
training, and maintenance training.

Q: What after-sales service do you provide?
A: 1) Installation support. We can assign engineers to visit the site for installation.
2) English manuals and other documents are available for delivery.
3) Lifelong technical support; maintenance service for the complete service life.
4) Warranty: one year for the whole machine.
