Name: Risense Full Automatic Rollover Car Wash System Machine with 5 Brushes and air Dryer for Sale
Brand: Qingdao Risense Mechatronics Sales Co., Ltd.
SKU: CF-340
Availability: InStock

Home Products rollover car wash machine

Risense Full Automatic Rollover Car Wash System Machine with 5 Brushes and air Dryer for Sale

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Risense
Model Number:	CF-340

Contact Now

Detailed Product Description

Size:	261036002815mm	Material:	Hot-dipped Galvanized Steel Frame
Warranty:	One Year	Output Power:	>1500W
Product Name:	Risense Full Automatic Rollover Car Wash System Machine With 5 Brushes	Overall Dimension:	360036002850mm
Installation Scope:	1100037003100mm	Application Scope:	11000*3700mm
Washing Time:	3'17'' One Rollover, 4'58'' Two Rollover	Water Requirement:	DN25>80L/min
Electricity Requirement:	AC 380V, 50Hz	Air Requirement:	0.75-0.9Mpa
Water Consumption:	90-150L/set	Shampoo Consumption:	15-20ml/set
Design Style:	New China-Chic

Product Overview

Risense full automatic rollover car wash system machine with 5 brushes and air dryer for sale

CF-340 is an Ultra cost-effective rollover car wash machine independently developed and produced by Risense. It adopts ZCF bending alloy frame which has stronger corrosion resistance and stability. It has 4 groups of air dryer with very large air volume and better drying effect. The Innovative use of counterweight self-balancing top brush which soften the fluctuation of the machine during the movement process of the top brush. So the top brush can wash the head, the end of the car under the constant pressure so that the machine can be cleaned safely.

FEATURES AT A GLANCE

1.MCU control system

2. ZCF alloy bending frame

3. 5 brushes(1 top brush+2 small brushes+2 big brushes)

4. automatic shampoo mixing system

5. automatic wax mixing system

6. Touch screen

7. prewash---shampoo---brush wash---high pressure water---wax spraying---drying

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Overall dimensions	2610x3600x2815mm
Assembling range	10870x4100mm
Moving range	10870x4100mm
Available size for car	5200x2100x2100mm
Available car to wash	car/jeep/coach within 10seats
Washing time	2'45"(1 rollover)/4'15"(2 rollover)
Car wash capacity	15-20cars/hour
Mains voltage	3PHASE AC380V /50HZ
Total power	21.57 KW
Water supply	DN25mm/Waterflow rate≥80L/min
Air pressure	0.75-0.9Mpa/Airflow rate≥0.1m³/min
Water/electricity consumption	72L/Car, 0.31kw/Car
Shampoo consumption	7ml/Car
Water wax consumption	12ml/Car

PRODUCT CONFIGURATION

Before the car enters the car wash machine, it is scanned by the photoelectricity and the figure of car shape is collected. The top brush moves according to the data processed by MCU.

The frame is cut by laser machine precisely. ZFC alloy bending frame with a high movement precision. It is higher than the welded frame.

MCU system is faster with large volume and low failure rate and and it can be upgraded long-distantly and be synchronized with company's technology.

Swinging balanced top brush

Swinging type balanced structure top brush is raised by air cylinder.

Strong fixed air dryer

Silent strong air dryer with fixed air and better drying effect. It is environmental friendly and is with low noise.

Low failure rate and show the error code

The frame is precisely cut by laser cutting machine and bent by the CNC machine. It fixed with high strength Dacromet Screw. So that it has very high movement precision. It is firm and safe. The failure rate is very low.

When the machine breaks down, the error code will appear on the screen and the reason. It is very easy to solove the problem.

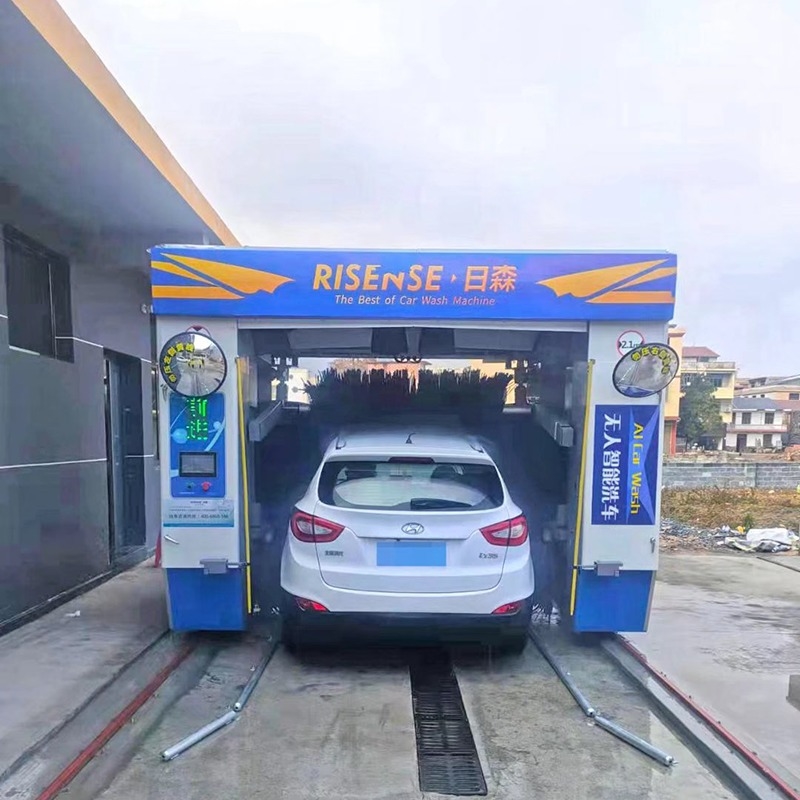

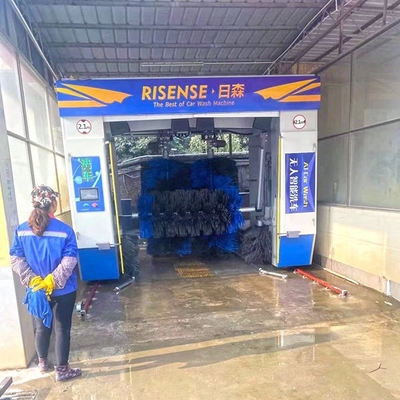

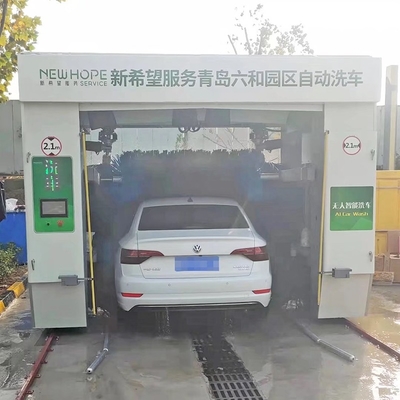

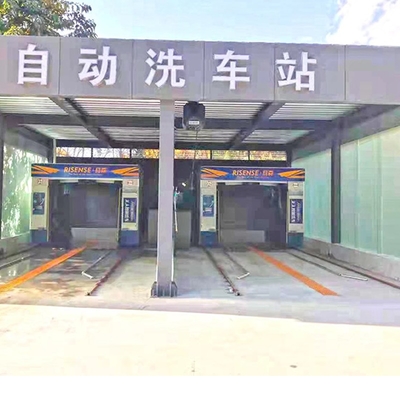

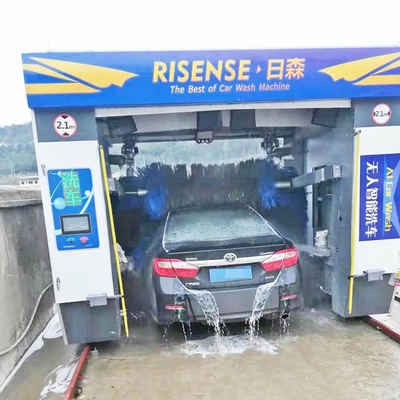

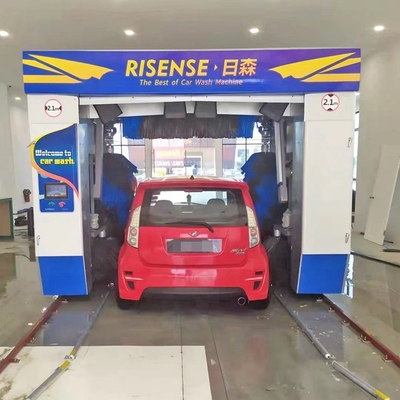

Details Images

SIMILAR PRODUCTS

Company Profile

Qingdao Risense Mechatronics Co.,Ltd. is a manufacturer of car washing machines with advanced production equipment and strong technical force. Our products are popular with car dealers, coach station and travel agenies becauce of its wide series, high quality washing effect, reasonable prices and stylish designs. Our products are extensively used in car decoration and other industries. Our products are widely recognized and trusted by user and can meet continuously developing economic and social needs.
We weclome new and old customers from all walks of life to contact us for future business relationship and achieving mutual success!

As a car wash system manufacutrer, we have nearly 10 years of production experience. To date, our vehicle cleaning systems have been sold in more than 100 countries including Russia, The United States, Canada, Singapore, Saudi Arabia, Pakistan and Spain. If you are in search of a new vehicle cleaning system or are looking for an agency opportunity, you are welcome to contact us.

Our company has obtained ISO9001 Quality System Certification, Europe CE Quality Certification and ISO 14000 Envionmental Certifications. We conduct production and quality inspectons in strict accordance with the standards set by these governing bodies and some of our own additional standards. We put forth great effort to meet all of the requrements of our customers.

FAQ

Q: Will we provide pre-sale services?
A: Free product consultation is available and custom car wash solutions will be provided according to your preferences car wash machine type, daily passenger flow, venue size, etc.

Q: What are your cooperation modes?
A: There are two cooperation modes with Risense: agency and distribution. You can become an agent by purchasing more than 10 vehicle wash machines every year and as one of our distributors, you can enjoy a more favorable price.

Q: Do you provide construction drawings design?
A: Our engineers will provide customers with a car washing plant design and construction drawings on the basis of your location, environment, and purchased equipment model.

Q: How about installation?
A: Our after-sales installation engineers will go to the site and offer customers free installation, testing, operational
training, and maintenance training.

Q: What after-sales service do you provide?
A: 1) Installation support. We can assign engineers to visit the site for installation.
2) English manuals and other documents are available for delivery.
3) Lifelong technical support; maintenance service for the complete service life.
4) Warranty: one year for the whole machine.
